ASME/ANSI B16.5 SOCKET WELDINGFLANGES CARBON, ALLOY, STAINLESS STEEL SOCKETWELD FLANGES

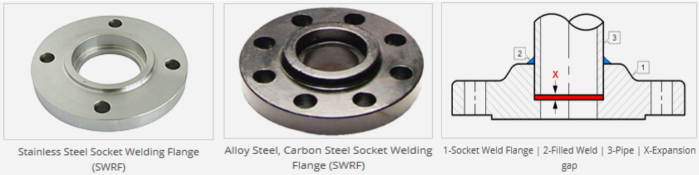

 SOCKET WELDING FLANGE, SW  FORGED FLANGES,SOCKET  WELD FLANGE  PRODUCTION RANGE

 Size: 1/2″ (15 NB)to 48″ (1200NB)

 Standards:ANSI B16.5, ANSIB16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

 Pressure Ratings: Class 150,Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10,PN16,  PN25,PN40, PN64 etc.

 Carbon Steel Socket Welding Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694F42, F46,  F48,F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle BlindFlange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8

 Stainless Steel Socket Welding Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI,F310, F321,F904L

 Alloy Steel Socket Welding Flanges: ASTM A182 F1, F5, F9, F11, F22, F91

 Special Alloy Socket Welding Flanges: Duplex, Super Duplex, Nickel Alloys

 Flange Face Type: Flat Face(FF), Raised Face (RF), Ring Type Joint (RTJ)

 Coating/SurfaceTreatment:  Anti-rust Paint, Oil Black Paint, YellowTransparent, Zinc Plated, Cold and Hot Dip Galvanized

 Technical Information – Specifications, Dimensions Socket Welding Flanges

  ANSI/ASME B16.5 Socket Welding Flange150lb

  ANSI/ASME B16.5 Socket Welding Flange300lb

  ANSI/ASME B16.5 Socket Welding Flange600lb

  ANSI/ASME B16.5 Socket Welding Flange1500lb
